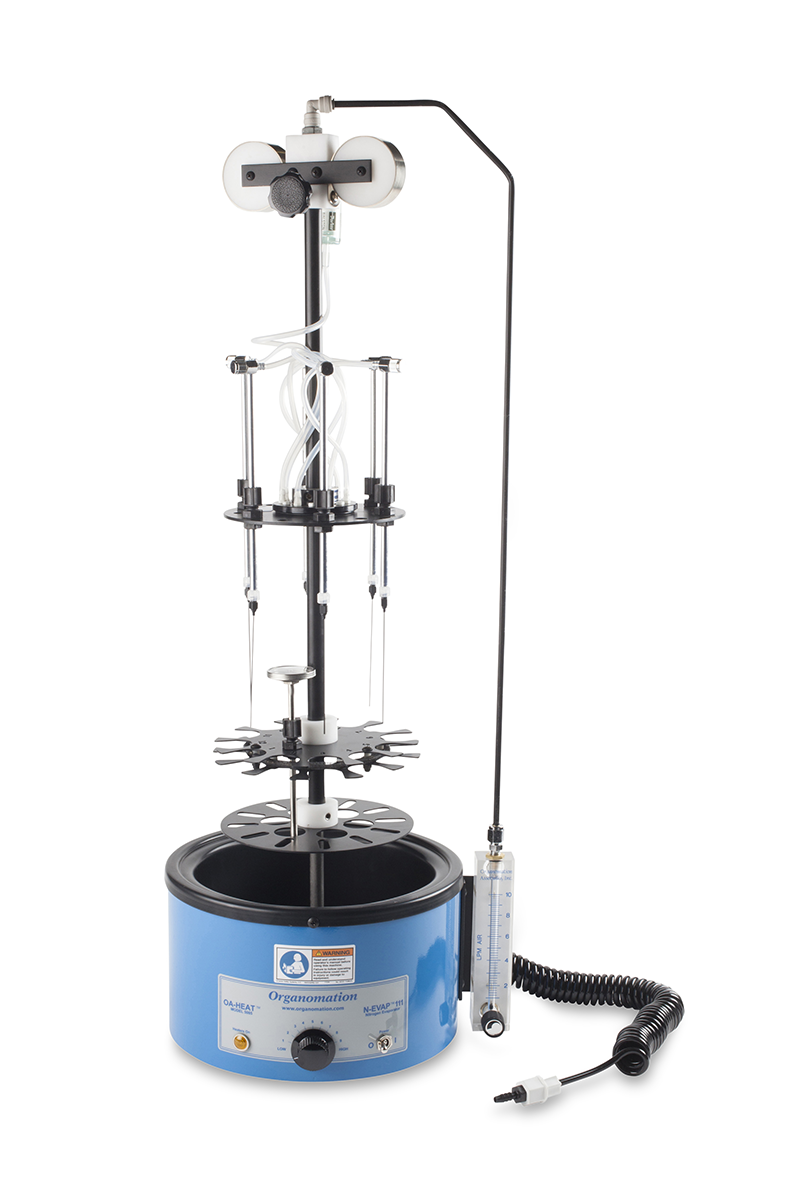

6 Position N-EVAP Nitrogen Evaporator

The 6 position N-EVAP’s ability to expand the sample size range with an optional large sample holder makes it an ideal instrument for laboratories that will be evaporating up to 6 samples at once and are using a wide range of sample flask outside diameters. The standard instrument fits samples with an outside diameter of 10-30 mm, and the optional large sample holder can accommodate samples with an outside diameter of 30-56 mm.

The 6 position N-EVAP sample concentrator (cat# 11106) was adapted from the 12 position N-EVAP (cat# 11155) in the early 1970s. Since its inception, it has proven to be durable, reliable, and the most affordable member of Organomation’s N-EVAP line. These economical units provide controlled concentration of sample vials through the application of nitrogen gas within a heated water bath. The N-EVAP’s circular rotating design permits each sample to be accessible from the front of the instrument for easy insertion and retrieval. The chrome plated needle valves are individually milled from solid brass, and allow precise adjustment of the gas flow rate at each sample position. This promotes efficient and safe sample reduction with minimal nitrogen waste. The stainless-steel construction of the bath ensures that the instrument is long lasting.

Small Footprint

N-EVAP Model 111 requires under one square foot of bench space

Flexible

An adjustable sample holder design fits a wide variety of sample tubes and vials at once

Customizable

For tubes outside of the standard 10-30 mm range, choose from optional small or large sample holders to accommodate your glassware

Individualized Control

Optimize evaporation of diverse samples with individual gas flow control at each vial

Features

• Nitrogen filter

• Adjustable flow meter, 0-10 LPM

• Phthalate free silicon tubing eliminates contamination concerns

• High temperature limit switch for safety

• Dual band spring hoist assembly (except in dry bath model)

• Precision needle valve tube assembly

• Needles, 4-inch x 19 gauge with chrome plated brass hub and stainless-steel shaft




Options

• 220v wiring harness (Option Code# -2)

• Z-Purge/positive pressure purge case (Option Code# -Z)

• Acid resistant coating on instrument and needles (Option Code# -RT)

Specifications

Models

*All “-O” models come with a base and stand assembly instead of a heated bath. These instruments are designed for evaporation procedures performed at ambient temperature.
