Nucleic Acid Purification System

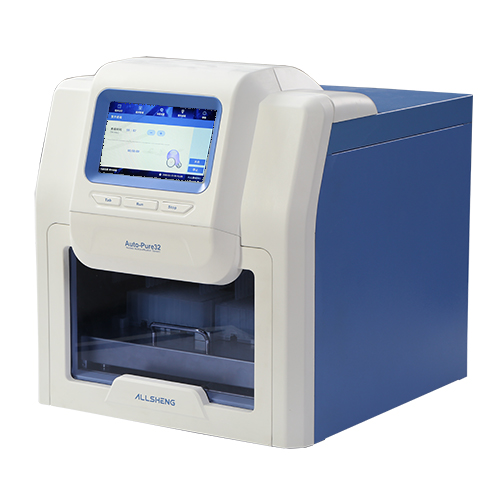

Auto-Pure32A Nucleic Acid Purification System

Auto-Pure32A Nucleic Acid Purification System

Automate low-throughput sample preparation within your laboratory workflow using Magnetic Particle Processors: Auto-Pure32 Nucleic Acid Purification System. It for processing volumes up to 1ml, With the ability to go down to 50ul to release target molecules, samples such as DNA or RNA can isolated and concentrated from larger starting volumes at the same time. The Auto-Pure32 comes with a 96 deepwell plate for necleic acid purification of up to 32 processed samples per run.
Pricing & Availability Download Catalogue Add to wishlist Allsheng
Brand: Allsheng Not Available
Add to Cart Contact Us for better pricing. Warranty Details
Free delivery within Singapore only

Features

  •  It is easy to use with 7 inch touch screen
  •  Very simple operation (easy to install, operate, maintain) without computer
  •  Very fast extraction protocol, 15~40 minutes / cycle depending on sample typeand method
  • Universal built-in program for easy using
  • High purity and excellent yield of nucleic acid
  • UV lamp to avoid cross contamination
  • Shortcut key to make for easy running, stopping the magnetic beads program
  • Open system can optimize purification proposal according to various magnetic beads kits
  • Drawer design to prevent possible injuries
  • With special plastic consumables to avoid cross contamination
  • Improves workflow, and allows staff to perform other value-added tasks
  • Ensures impurities are removed; improved sample quality leads to better downstream analyses
  • Capable of extracting 1~20 samples or 1~32samples per run and process samples up to 1ml, 3ml and 5ml
  • Alarm for indicating the completion of purification
  • Pause function for emergent stop

Specification

Type  Auto-Pure32A
 Throughput  1~32
 Process volume  50~1000ul
 Collection efficiency  >95%
 Magnetic rod number  32
 Purification accuracy  100 copy sample positive rate>95%
 Stability  CV<5%
 Plate types  96 Deepwell plate
 Healting for lysis tube  Ambient temperature~120°C
 Heating for elution tube  Ambient temperature~120°C
 Operation  7 inch color touch screen
 Extraction steps  Lysis, Sample binding, Washing and elution
 Storage Capacity  more than 100 programs
 Protocol Management  Create, edit, delete, protocol mode
 Pollution Control  UV light
 Lighting  Yes
 Extension interface  4 standard USB port, built-in SD card
 Exhaust  Fan
 Power Supply  450W
 Dimensions  400×470×450 mm
 Weight  25Kg
Specification :
Process volume 50~1000ul
