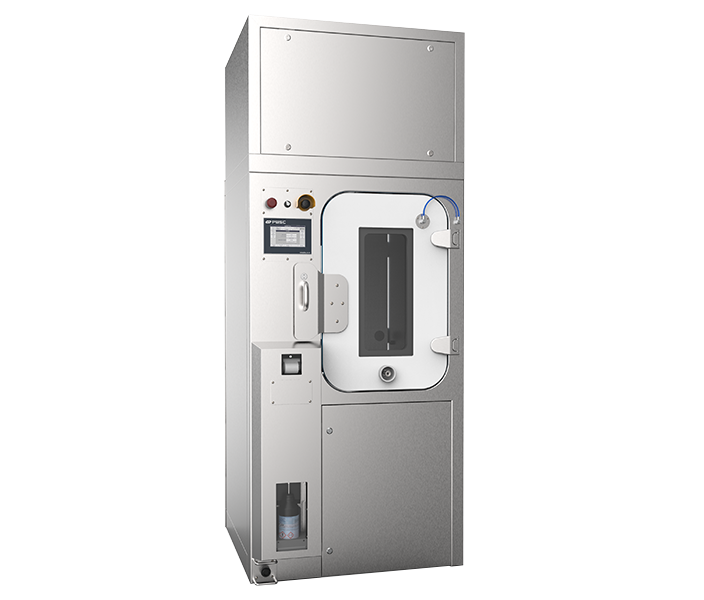

PBSC’s 6Log surface disinfection hatch is a freestanding unit, ideal for material production environments and equipment loads in Bio-Medical, Bio-Pharma and high containment applications. The HPV hatch provides fully integrated decontamination solutions from market leading H202 generator manufacturers ensuring regulatory compliance and consumable traceability.
Effective against a wide range of micro-organisms and viruses, the decon hatch provides a low heat decontamination solution for heat sensitive items such as biologic preparations or electronic equipment. The decontamination hatch is an essential addition to a facility process ethos for material flow, into or out of the critical environment.
The decontamination cycle is initiated via the colour touch screens either side of the chamber. Providing operators with in-cycle data from the chamber and VHP™ generator. The hatches are intuitive allowing ease of use for operators.
On the MD-Hi model the hydrogen peroxide generator is integrated on the hatch or in the building technical area. Both options have a bottle housing and printer mounted on the chamber. Custom integration to a multi-room decontamination system is available.
The chamber includes either a S7-1200 or S7-1500 PLC which monitors and records all critical parameters of each cycle.
Various hatch sizes with pneumatic seal doors are available, from 2’ x 4’ up to 4’ x 5’ (WxH)
Other fumigations available – Formaldehyde and Chlorine Dioxide
PBSC’s Integrated Decontamination Hatch can also be known as a Transfer Hatch, Pass Box, Pass Thorough, Through Box, Trolley Box, Decontamination Transfer, Decon Hatch, Decon Transfer and a Decon Pass Through.
