Wide Dynamic Range (with improved zero point adjustment)

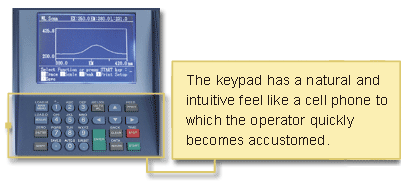

Ease of Use / Stand-alone Operation (no PC required)
Optional PC Operation
Automatic Performance Monitoring
Specifications
Item
Description
Operation mode
Stand-alone or PC operation
Light source
150W Xenon lamp (self-deozonating lamp house)
Photometric principle
Monochromatic light monitoring ration calculation
Sensitivity
800 or more (RMS) (bandpass 5nm, response time 2 S)
Bandpass
2.5, 5, 10, 20 nm (both Ex and Em)
Wavelength scan speed
60 – 3,000 nm/min (four steps), 12,000 (when PC control)
Dimensions / Weight
600 (w) x 503 (D) x 343 (H) mm/ approx.41 kg
Power consumption
AC100, 115, 220, 230, 240 V 50/60 Hz 400 VA
Fluorescein Measurement
Owing to the F-2700’s high sensitivity and wide dynamic range (about six orders of magnitude),
low concentration and small volume samples can be analyzed effectively.
