LyoPro Series Laboratory Freeze Dryers

Antech Scientific offers advanced LyoPro series freeze-drying system with unique LyoSmart operationg system, realizing full contorl of vacuum degree, making the freeze-drying process simpler, faster and better.

LyoPro series freeze dyers are compact in design, high-efficiency in performance, smart in operation, and in daily use.

Innovative features

• Compact, high-performance laboratory systems with a small footprint
• 7” touch screen installed with LyoSmart operating system
• Programmable freeze-drying steps
• Controlled vacuum degree for optimized process times
• Built-in ice condenser coils for higher efficiency
• Fast defrost via integrated hot gas

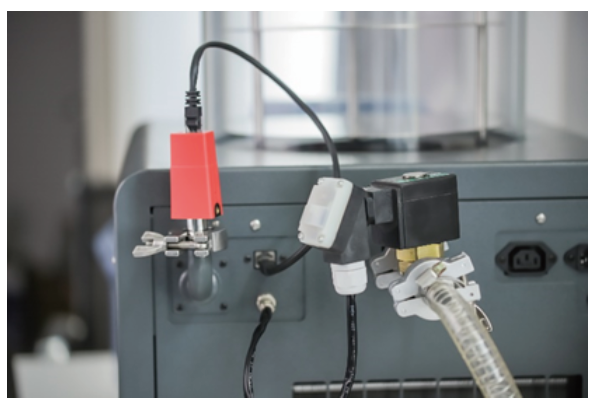

• Automatic non-return venting valve, prevents “vacuum pump" oil mist from entering cold trap
• Pirani vacuum sensor with accuracy 0.001 mbar
• Low noise level: 48~52dB(A)
• High quality vacuum pump

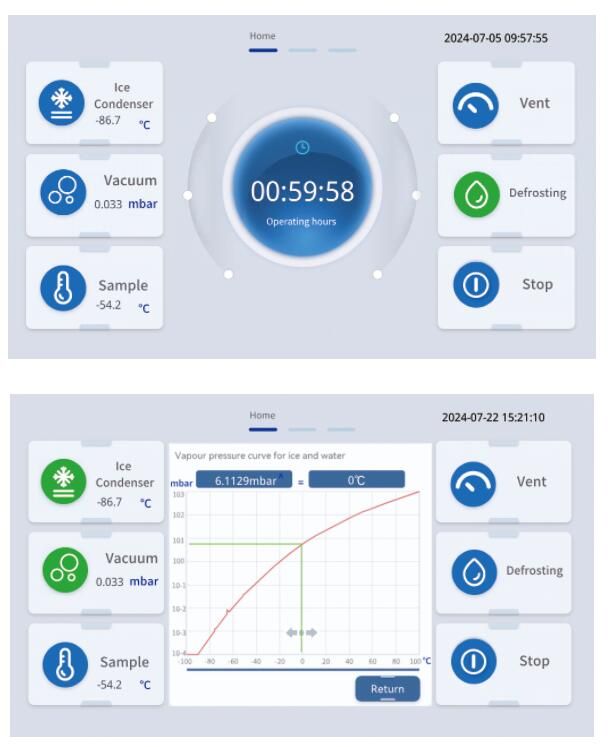

LyoSmart operating system

7” touch screen controller, installed with advanced LyoSmart operating system, assisting users to optimize the freeze-drying process.

• Display of ice condenser temperature and vacuum degree
• Product temperature display according to sublimation  pressure curve
• Manual or automatic mode process optional
• Programmable freeze-drying steps with high flexibility
• Vacuum degree of each step can be set and controlled independently
• Historical data recorder for convenient analysis of processing
• Password access protection

Full vacuum degree control

 The vacuum degree and duration of each step can be set and controlled at auto mode

• Vacuum control to reduce drying times by up to 40%
• Real-time vacuum degree is displayed on the screen
• Pirani vacuum gauge with accuracy 0.001 mbar

Various “one button” mode

• One-button start: in auto mode, press "START" to start process according to preset program
• One-button stop: vacuum valve shut off, preventing product polluted due to vacuum back suction of pump oil
• One-button vent: aeration valve controls vacuum vent gradually, preventing product polluted due to vacuum back suction of pump oil
• One-button defrosting: hot air defrosting of cold trap, to enter a new process faster

Advanced cooling system

• -55°C: single compressor system, high efficiency
• -85°C: 2-compressor cascade system, cold trap temperature reaches -85°C within 10 minutes
• -105°C: 2-compressor cascade system, suitable for organic solvents
• SECOP brand compressor for durable use

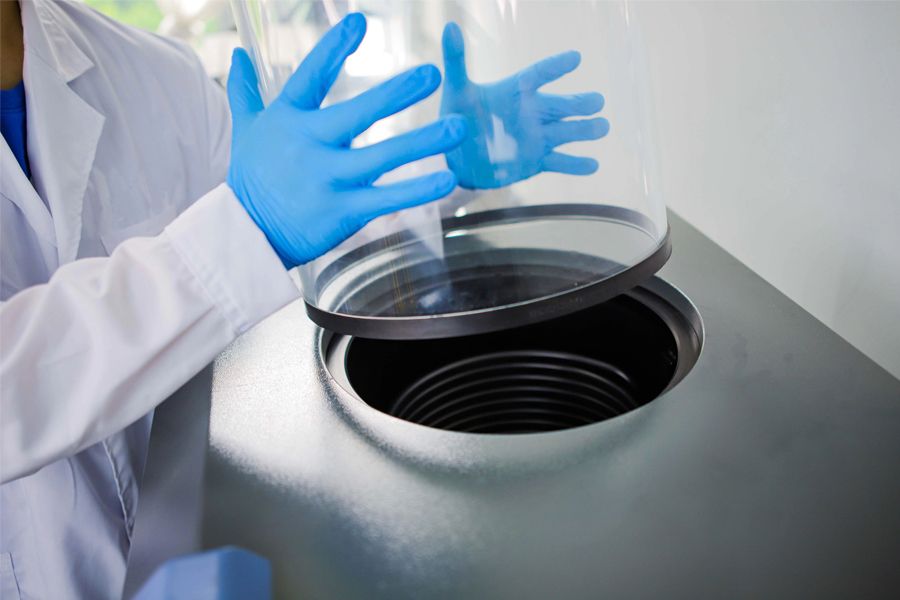

Optimized flange seal

• Flat surface & L-shaped sealing ring design, no need for extra manual pressure
• Vacuum grease not required, easier to use and clean
• Proven excellent sealing performance for long-term use
