Material Science & Nanotechnology
Pipette

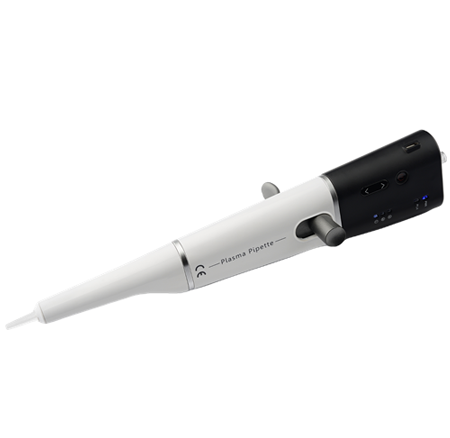

Plasma Pipette
Specifications
General
| Size | 52(W) x 76(D) x 270(H) mm |
|---|---|
| Weight | 375g |
| Power | Low, Medium, High |
| Materials | Plastic, Metal (Inside) |
| Gas | Ar (0.5~1.5 bar) |
| Gas line | 4mm tube |
| AC Input | 100-240V~50/60Hz 1.2A Max |
| AC Output | 5V,4A |
Practical Handheld Atmospheric Plasma for Researchers
Easy to Use / Simple Configuration / Affordable Price
Different Types of Tips
S-Type
Penetrating thin cracks and interior of a hollow object
e.g.) Tubes, Culture-Wares, Micro-channels *Not for Conductive Materials
A – Dense Plasma
B – Wide Plasma
C – Intense Plasma
F-Type
For all types of materials
* Less penetration than S-Type
Material
| Conductor & Semi-conductors | Thin cracks and interior of hollow objects | |
| S-Type | X | o |
|---|---|---|
| F-Type | o | o |
General Applications
Nano channel / Micro-fluidic device / Bio Chips
– Sterilization in nano channel
– Cleaning, Surface modifications
Micro-electronics
– Cleaning (Removal of organic contaminants)
– Surface modification
Culture Wares
– Surface modification
– Cleaning
Medical device
– Sterilization
– Surface modification
Dermatology research
– Wound healing (Tissue engineering)
– PSR (Plasma Skin Rejuvenating)
Other Uses in Bio & Medical Fields
– Tumoroids, Organoid
– 3D Patterning
– Dental applications
– Plasma Stimulated Medium (Liquid)
| Specifications | Kindly refer to the "Overview" tab. |
